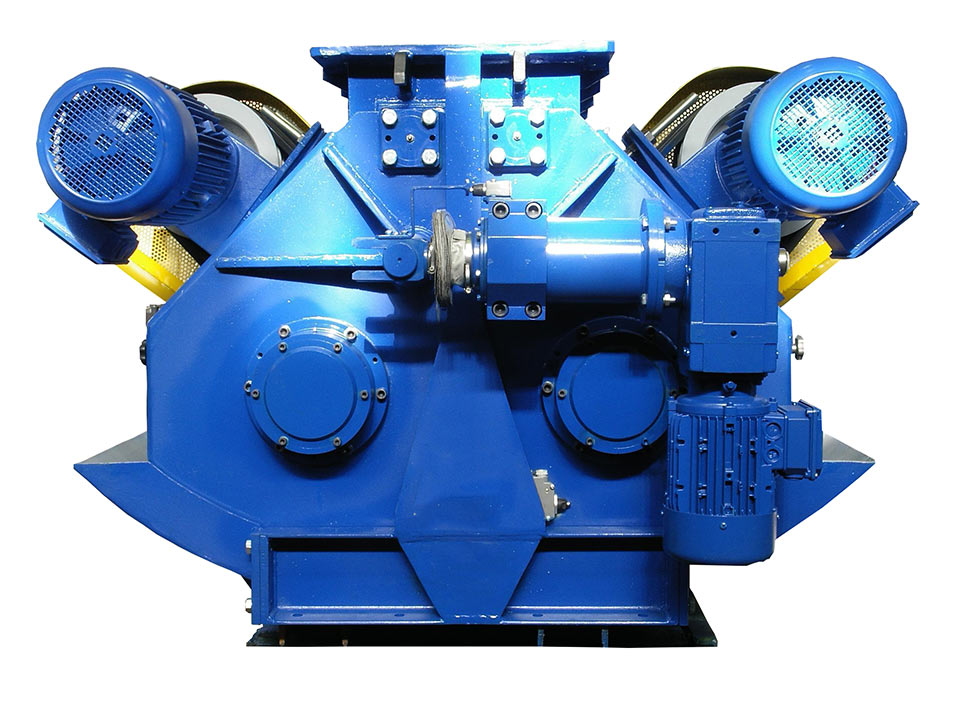

Rotary self-aligning crushers KWW

APPLICATION
Rotary self-aligning crushers are designed for crushing of moulding sands, liquid self-hardening sandmix as well as core sands after they are knocked out of the casting moulds.

PRINCIPLE OF OPERATION
Crushing of the batch takes place between two rolls rotating with different peripheral speeds in opposite directions. The rolls are driven by motoreducers. The side surfaces of the rolls with thresholds welded on them constitute a standard work. At your request, we also produce plain-barrelled rolls or grooved ones. The rolls with individual drives are mounted on rockers. The pressure on the rolls is gravitational.

TECHNICAL DATA

Parameter	Unit	KWW-16	KWW-25	KWW-40	KWW-100
Rated output:	m3/h	16	25	40	100
Roll outside diameter	mm	366	508	508	508
Roll speed (left)	obr/min	220	190	190	210
Roll speed (right)	obr/min	200	210	210	190
Distance between rolls (min)	mm	2	2	2	2
Distance between rolls(max)	mm	160	220	220	220
Power of the motoreducer drives	kW	2x2,2=4,4	2x5,5=11	2x7,5=15,0	2x15=30
Power of the motoreducers for the rollspreader	kW	0,18	0,55	0,55	1,1
Output revolutions	rpm	26	28	28	26
Output revolutions	Nm3/h	1500	2000	2000	3000
Weight	kg	670	1501	1540	2900
