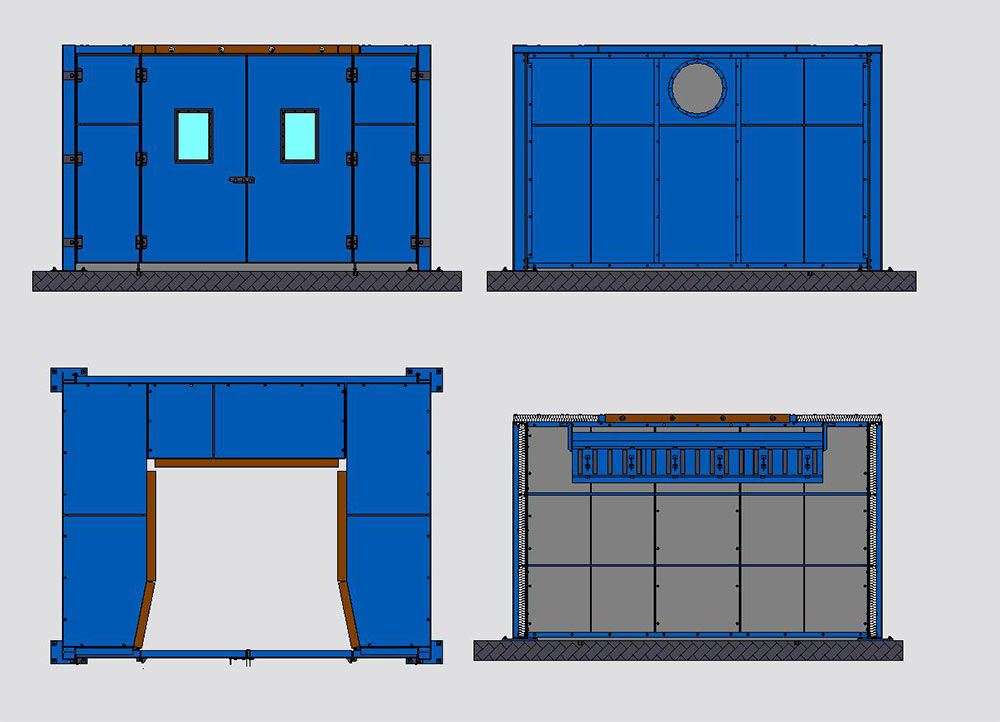

Damping and dedusting cabin KWO – SCHEME
Technical characteristics:
| Usable area | m2 | 61,3 | |
| Usable dimensions: | length width height |
mm mm mm |
6800 9100 4630 |
| Usable volume | m3 | 284 | |
| Total dimensions: | length width height |
mm mm mm |
7640 10250 5370 |
| Air output | m3/h | 40000 | |
| Clearance after opening the door | mm | 6900 | |
| Total power installed | kW | 9,5 | |
| Usable area | m2 | 53,3 | |
| Usable dimensions | length width height |
mm mm mm |
7100 7500 4040 |
| Usable volume | m3 | 215 | |
| Total dimensions: | length width height |
mm mm mm |
10530 7840 4485 |
| Air output | m3/h | 40000 | |
| Clearance after opening the door | mm | 6500 | |
| Total power installed | kW | 2x1.5=3.0 | |

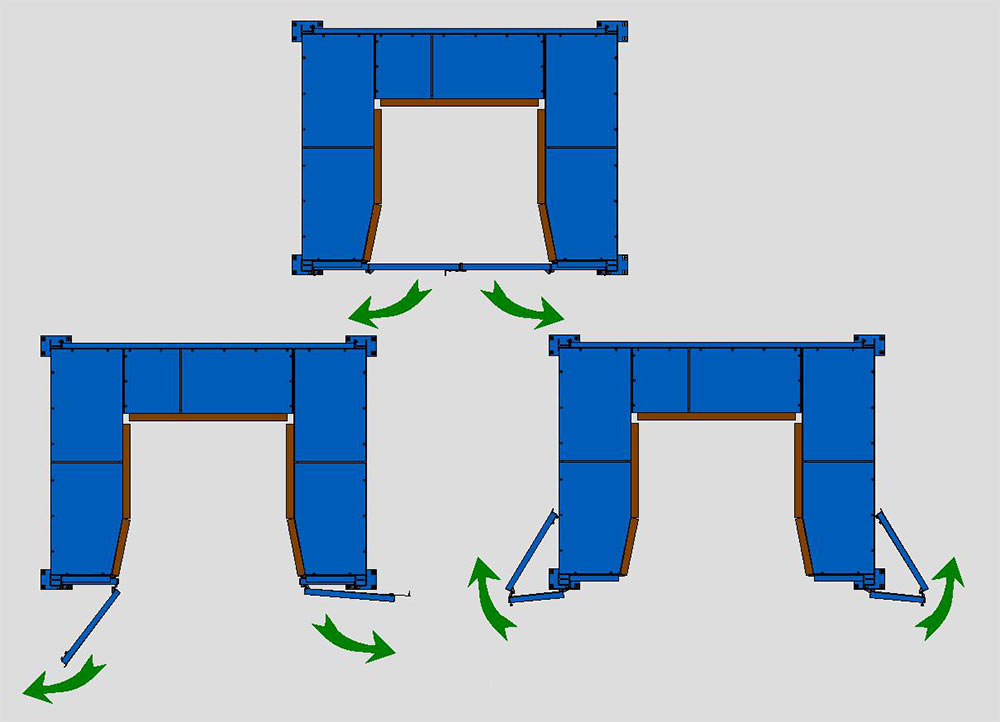

| The speed of the door | m/sek. | 0.1 | |
